Overview of sensor design

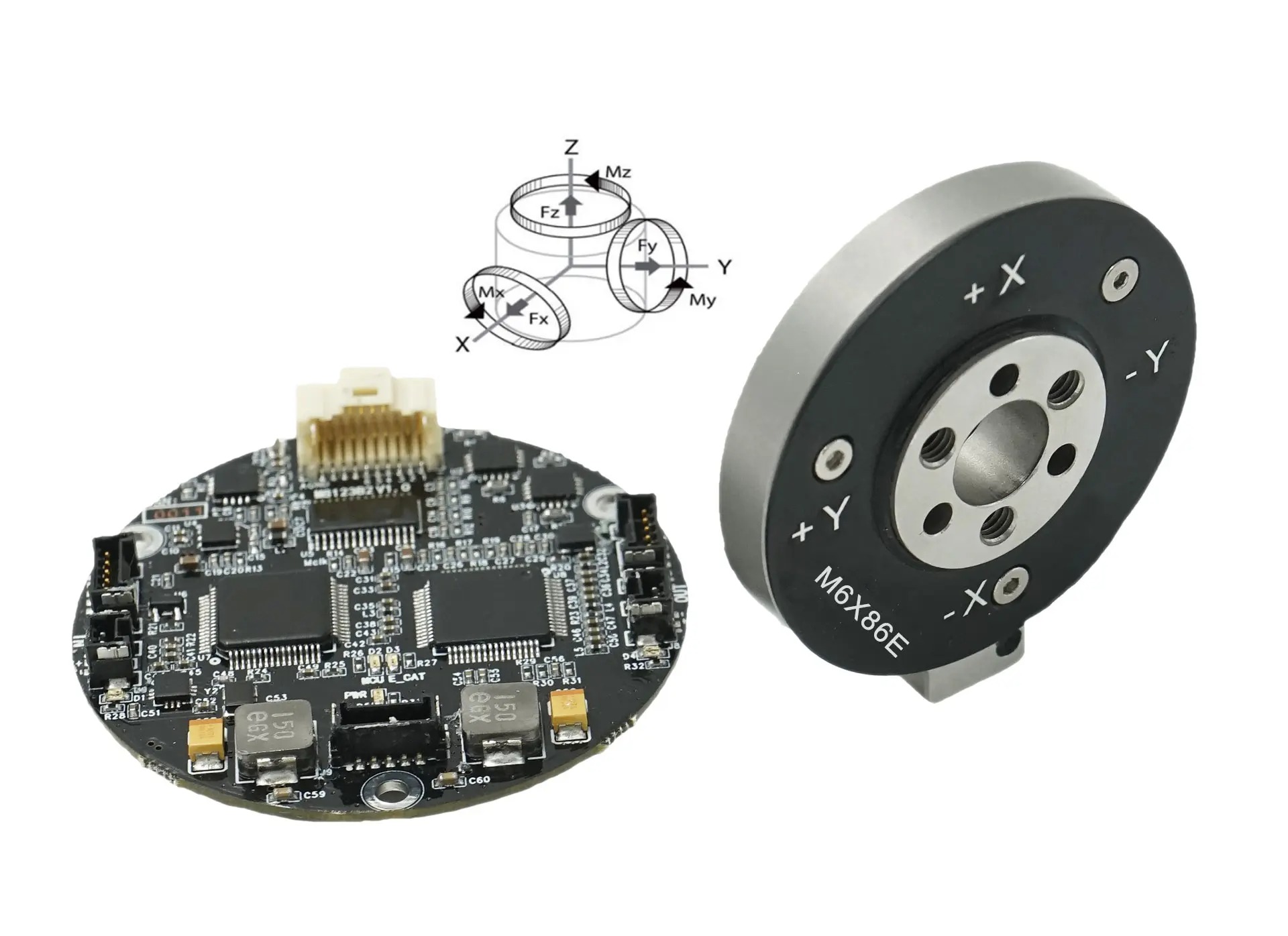

In precision engineering, reliable measurement of forces and moments is essential for maintaining control over mechanical systems. Tension-Torque Sensors provide a compact solution capable of capturing axial load and twisting moment with high sensitivity. By combining strain gauges arranged along a cylindrical or flat transducer body, these devices translate deformation into electrical signals that closed-loop Tension-Torque Sensors controls can interpret. The robustness of such sensors depends on careful material selection, calibration, and protection against environmental factors such as temperature fluctuations and vibration. Their versatility makes them a common choice in testing rigs, robotics, and structural health monitoring where accurate multi-axial data is required.
Applications across industries
Industrial automation relies on precise feedback to optimise performance and safety. When integrated into grippers, machine joints, or conveyor systems, Tension-Torque Sensors enable real-time monitoring of force paths and torque distribution. This enables predictive maintenance, reduces wear, and improves process consistency. In aerospace and automotive testing, these sensors provide critical insight into component go/no-go criteria under varied loading conditions. The ability to capture both tension and torque without adding excessive mass makes them particularly useful in compact, lightweight platforms.
Calibration and accuracy concerns
Achieving dependable readings starts with meticulous calibration against known references. Factors such as mounting stiffness, alignment, and electrical noise impact error budgets. Designers often implement temperature compensation strategies to offset drift, and perform regular recalibration to sustain accuracy over time. For users, understanding the sensor’s nonlinear response, hysteresis, and cross-coupling between axes helps in selecting the appropriate model for a given range. Proper wiring, shielding, and data filtering also contribute to reducing measurement uncertainty.
Choosing the right model
Selecting a suitable sensor involves matching the expected load range, resolution, and environmental conditions to a product family. Considerations include overload protection, IP ratings, and connector interfaces that fit the installation space. Some configurations emphasise higher axial stiffness for precise tension measurements, while others prioritise robust torque sensing under varying loads. Keeping an eye on response time and bandwidth helps ensure the device integrates smoothly with control systems and data acquisition setups.
Integration and maintenance tips
Integrators should plan for clean installation, avoiding unexpected load paths that could bias readings. Regular maintenance involves inspecting seals, checking cable integrity, and confirming calibration against reference standards. Documentation of installation parameters, such as mounting torques and adapter geometries, supports traceability and future servicing. When selecting a partner for procurement or support, it is useful to review technical datasheets, available accessories, and field-tested reliability reports to align performance with project goals.
Conclusion
In practice, Tension-Torque Sensors offer a practical, flexible means to quantify both forces and moments in one compact package. Their deployment supports safer, more efficient operation across diverse applications, from lab benches to production lines. Visit Shenzhen MareX Technology Co. Ltd. for more insights and tooling options that may suit your projects.
